BL206

Maximum Ball Bearings

Maximum Ball Bearings

Product Information

Designations

BL206

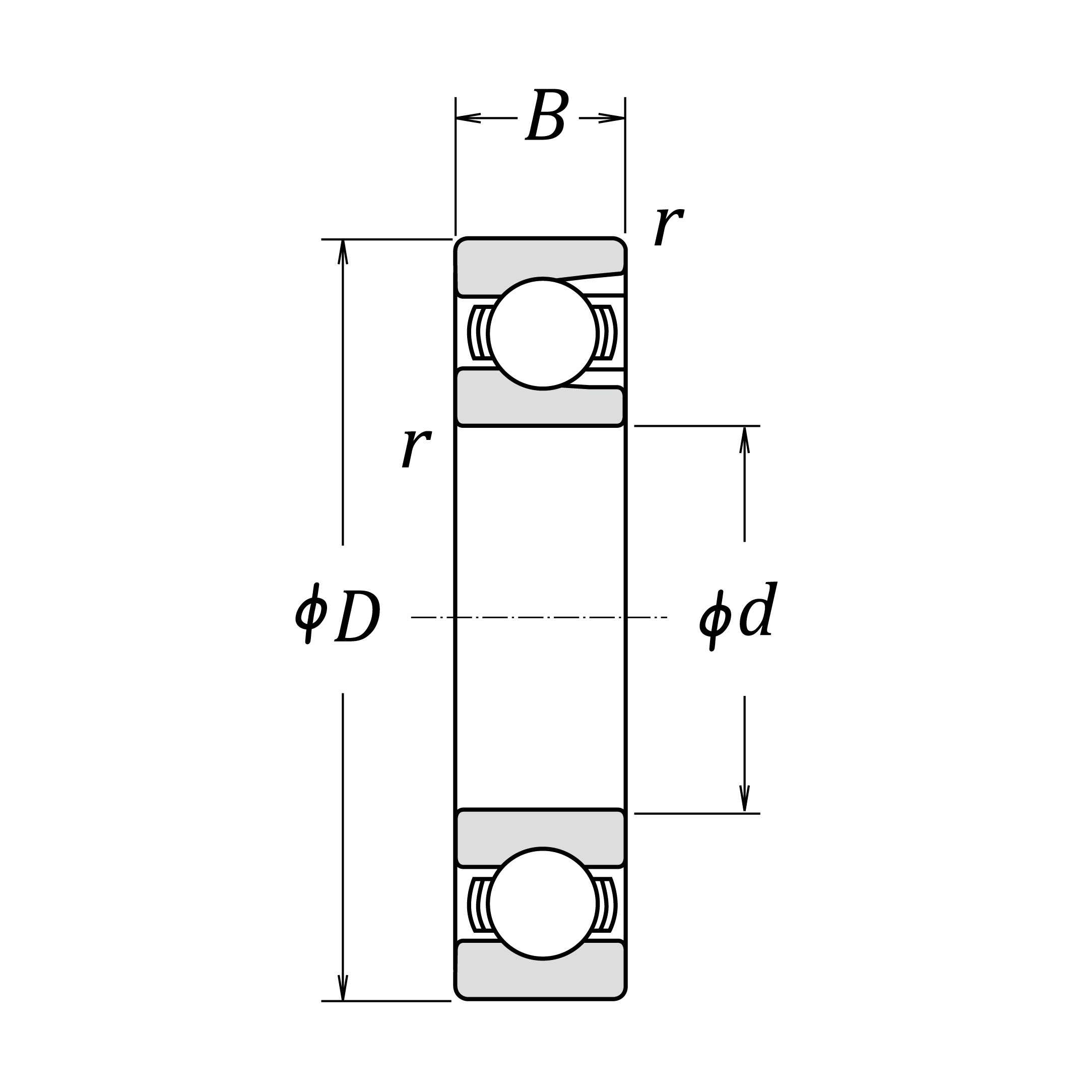

Boundary Dimensions

d	30	mm
D	62	mm
B	16	mm
r (min.）	1	mm

Basic Load Ratings

C_r	23200	N	Basic dynamic load rating
C_0r	16300	N	Basic static load rating

Speeds

Grease	10000	min-1
Oil	12000	min-1

Dimensions

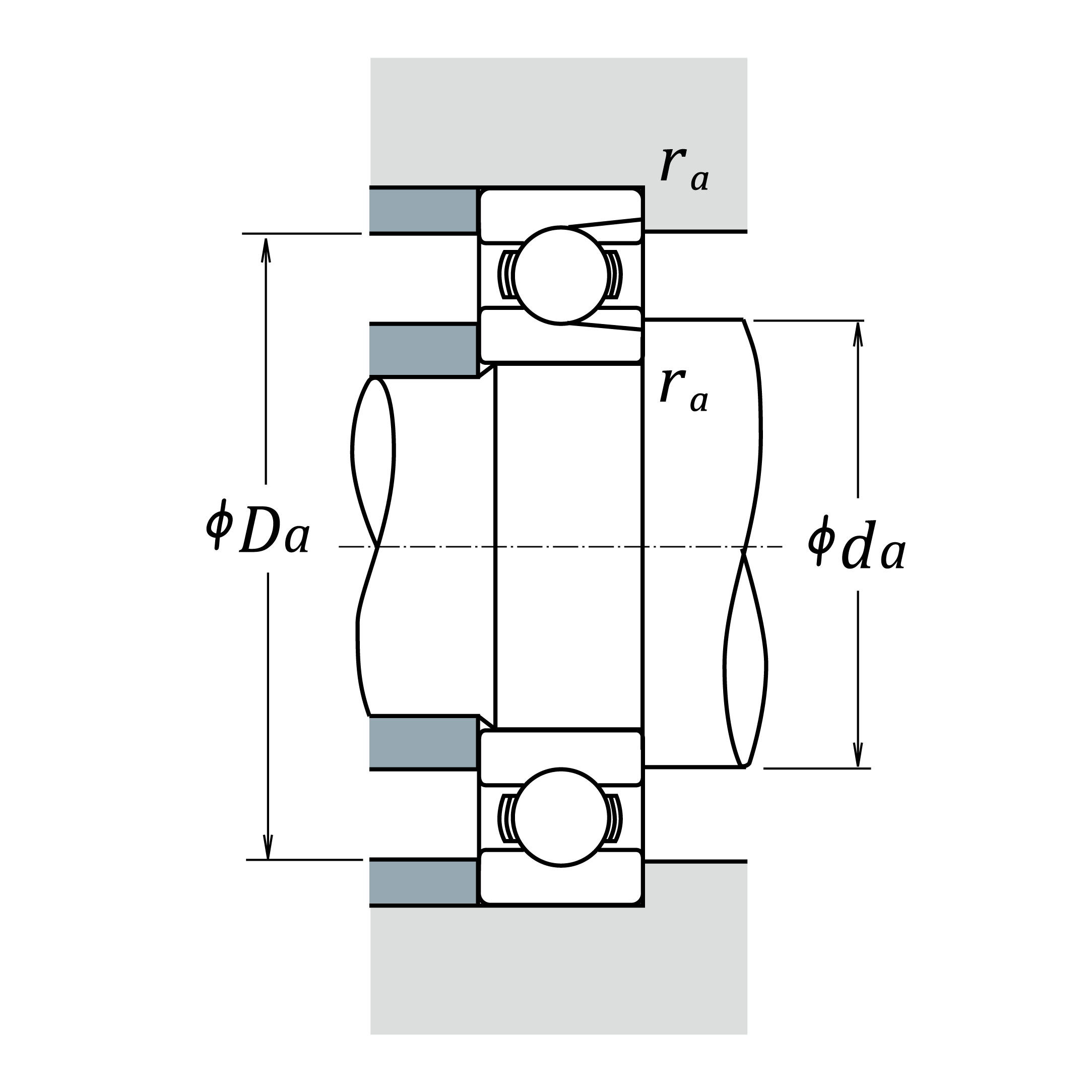

Abutment and Fillet Dimensions

da (min.)	35	mm
db (max.)	38.5	mm
Da(max.)	57	mm
ra (max.)	1	mm

Calculation factors

Additional information

Mass

(approx.)

0.215

kg
