23220CAMKE4

Spherical Roller Bearings
Spherical Roller Bearings

Product Information

Designations

23220CAMKE4

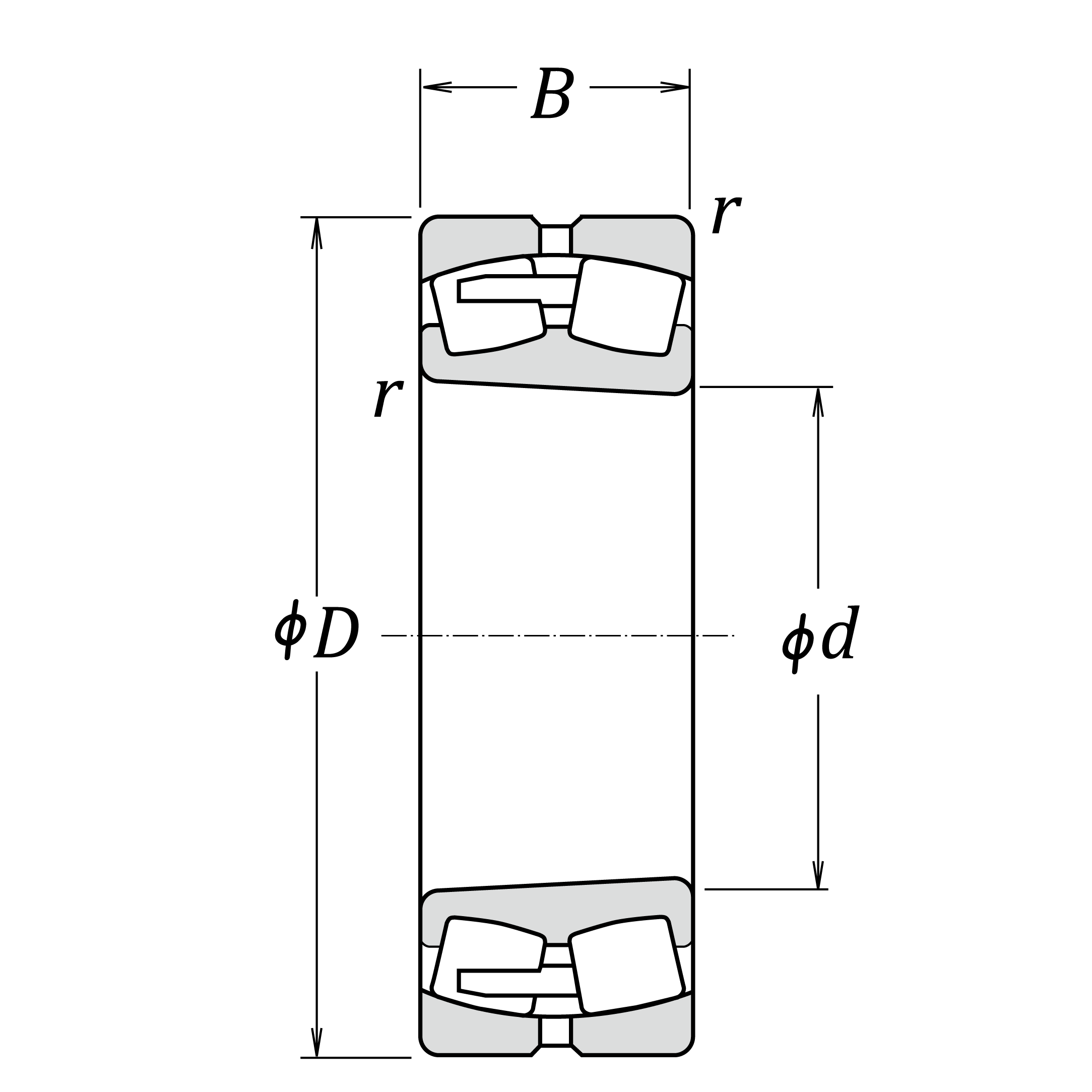

Boundary Dimensions

d 100 mm
D 180 mm
B 60.3 mm
r (min.） 2.1 mm

Basic Load Ratings

Cr 525000 N Basic dynamic load rating
C0r 605000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 2800 min-1
Mechanical (forced-circulation oil) 3800 min-1
Grease 1600 min-1

Dimensions

Abutment and Fillet Dimensions

da (min.) 112 mm
Da (min.) 155 mm
Da(max.) 168 mm
ra (max.) 2 mm

Calculation factors

e 0.32
Y2 3.2
Y3 2.1
Y0 2.1

Additional information

Mass

(approx.) 6.6 kg
