24126CAME4

Spherical Roller Bearings
Spherical Roller Bearings

Product Information

Designations

24126CAME4

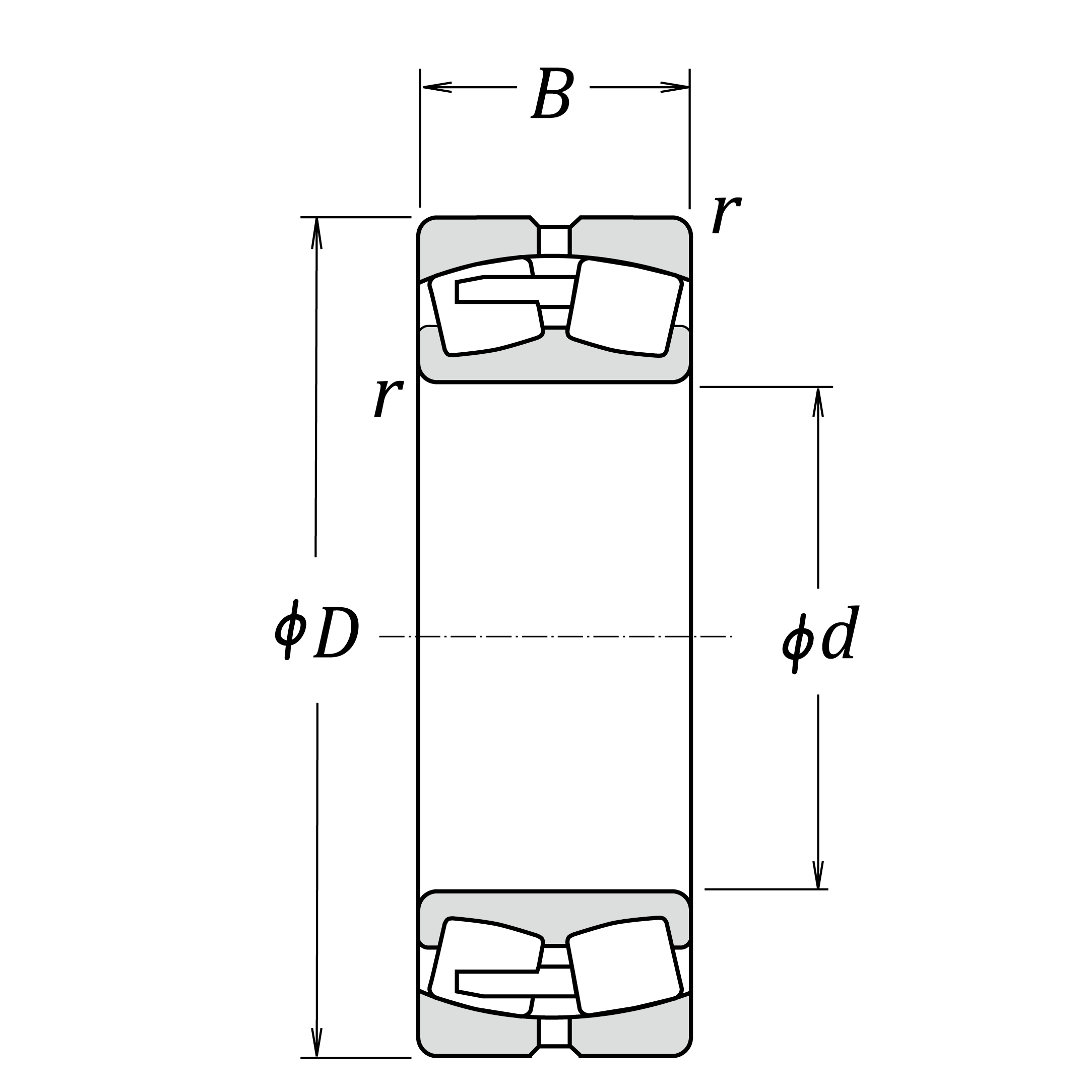

Boundary Dimensions

d 130 mm
D 210 mm
B 80 mm
r (min.） 2 mm

Basic Load Ratings

Cr 735000 N Basic dynamic load rating
C0r 1010000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 1800 min-1
Mechanical (forced-circulation oil) 2800 min-1
Grease 1300 min-1

Dimensions

Abutment and Fillet Dimensions

da (min.) 140 mm
Da (min.) 180 mm
Da(max.) 200 mm
ra (max.) 2 mm

Calculation factors

e 0.37
Y2 2.7
Y3 1.8
Y0 1.8

Additional information

Mass

(approx.) 10.7 kg
